Networking

Overview

IronCore's networking architecture is designed to provide a robust and flexible networking solution. It consists of several components that work together to ensure network out and inbound connectivity and isolation for Machine instances.

The main elements involved in IronCore's networking are:

• ironcore: Core networking component that manages network resources and configurations. For more details, see the Networking usage guide.
• ironcore-net: Global coordination service that manages network resource in an IronCore instance.
• metalnet: A service that provides cluster-level networking capabilities for Machines.
• dpservice: A service that manages data plane operations, including network traffic routing and policies.
• metalbond: A component that handles route announcements in an IronCore instance, ensuring that networking routes are correctly propagated across the IronCore installation.

ironcore and ironcore-net

ironcore-net is a global coordination service within an IronCore installation. Therefore, it is a single instance and the place where all network related decisions like reservation of unique IP addresses, allocation of unique network IDs, etc. are made.

ironcore-net has apart from its own API two main components:

• apinetlet: This component is responsible from translating the user-facing API objects from the networking resource group into the internal representation used by ironcore-net.
• metalnetlet: This component is interfacing with the metalnet API to manage cluster-level networking resources like NetworkInterface which are requested globally in the ironcore-net API but are implemented by metalnet on a hypervisor level.

Example apinetlet flow

When a user creates a VirtualIP resource in IronCore:

apiVersion: networking.ironcore.dev/v1alpha1
kind: VirtualIP
metadata:
  name: virtualip-sample
spec:
  type: Public
  ipFamily: IPv4

The apinetlet will reconcile this VirtualIP by performing the following steps:

1. Create an IP object in the ironcore-net API, which reserves a unique IP address.
2. Update the VirtualIP status with the allocated IP address.

The ironcore API server is agnostic on how the underlying global IP address is allocated and delegates this responsibility to ironcore-net.

A similar flow happens for Networks, LoadBalancer and NatGateways resources, where the apinetlet is responsible for translating and allocating the necessary resources in ironcore-net to ensure that the networking requirements are met.

metalnet and dpservice

As mentioned above, metalnet is responsible for cluster-level networking capabilities. It provides the necessary API to manage Networks, NetworkInterfaces, and other networking resources that are required for Machines on a hypervisor host.

TODO: describe how metalnet and dpservice work in detail and interact with each other.

metalnetlet and metalnet

metalnetlet and metalnet work together to provide the necessary networking capabilities for Machines in an IronCore on a hypervisor host. In a compute cluster, the metalnetlet will create for each Node in the cluster a corresponding Node object in the ironcore-net API. This Node object represents the hypervisor host and is used to manage the networking resources which should be available on this host.

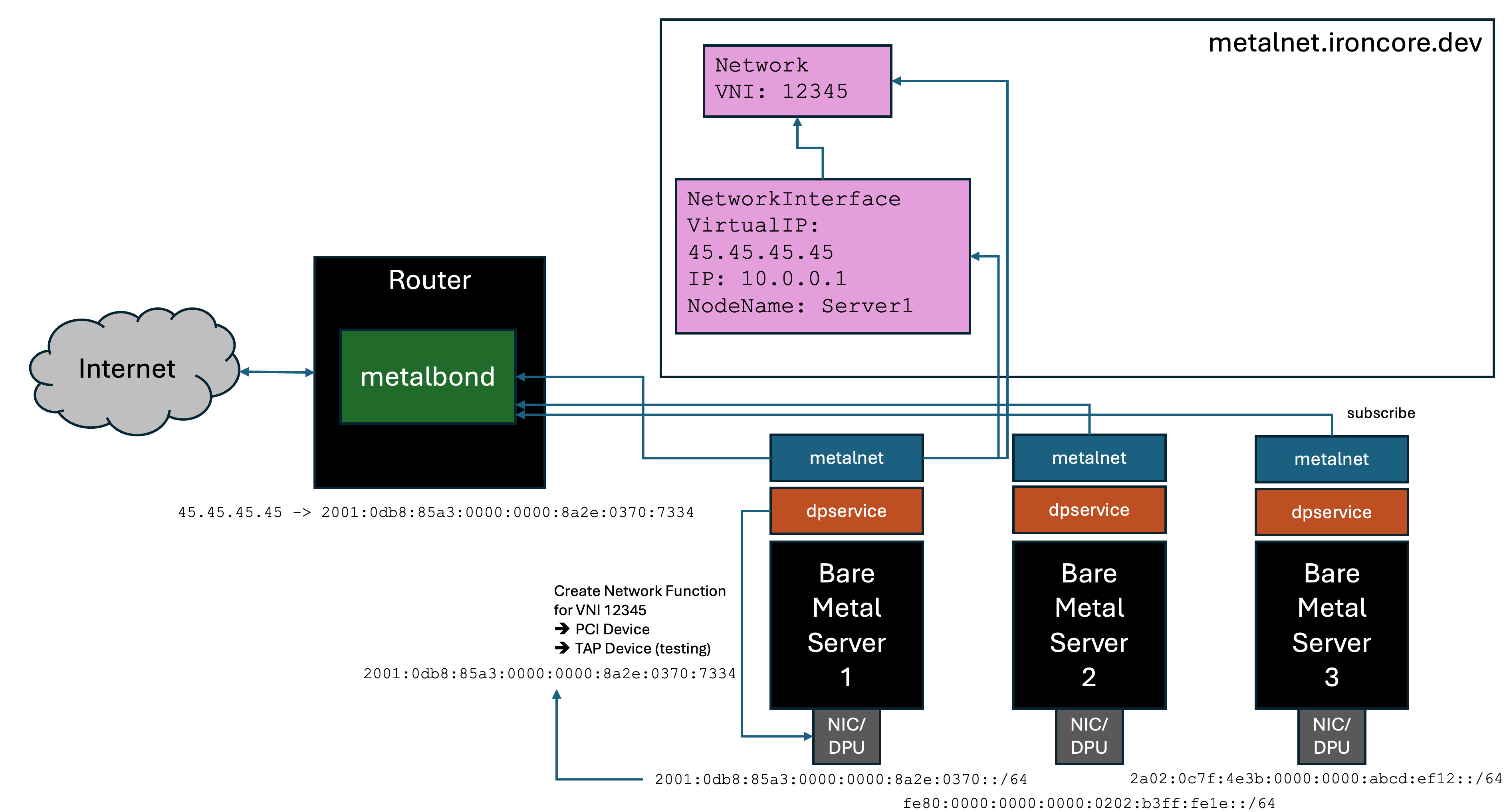

The image below illustrates the relationship between metalnetlet and metalnet:

The NetworkInterface creation flow will look like this:

1. A provider (in this case libvirt-provider) will create a virtual machine against the libvirt daemon on a hypervisor host. In case a NetworkInterface should be attached to this virtual machine, the machinepoollet will call the corresponding AttachNetworkInterface method on the MachineRuntime interface implemented by the libvirt-provider. The libvirt-provider itself then has a plugin into the ironcore-net API to create a NetworkInterface resource in the ironcore-net API.
2. The metalnetlet will then watch for changes to the NetworkInterface resource and create the corresponding NetworkInterface object in the metalnet API using the NodeName of the hypervisor host where the virtual machine is running.
3. Once metalnet has created the virtual network interface on the hypervisor host, it will propagate the PCI address of this virtual network interface back to the ironcore-net API by updating the status of the NetworkInterface resource.
4. The libvirt-provider will poll the ironcore-net API to get the updated status of the NetworkInterface and will use the PCI address in the status to attach the virtual network interface to the virtual machine instance.

LoadBalancer and NATGateways resources follow a similar flow. Here, however, the compute provider is not involved. The apinetlet will translate the ironcore LoadBalancer or NATGateway resource into the corresponding ironcore-net objects. Those will be scheduled on ironcore-net Nodes. Onces this is done, the metalnetlet will watch those resources and create the corresponding LoadBalancer or NATGateway objects in the metalnet API.

Role of metalbond

TODO: describe the role of metalbond in route announcements and how it interacts with dpservice and metalnet.
